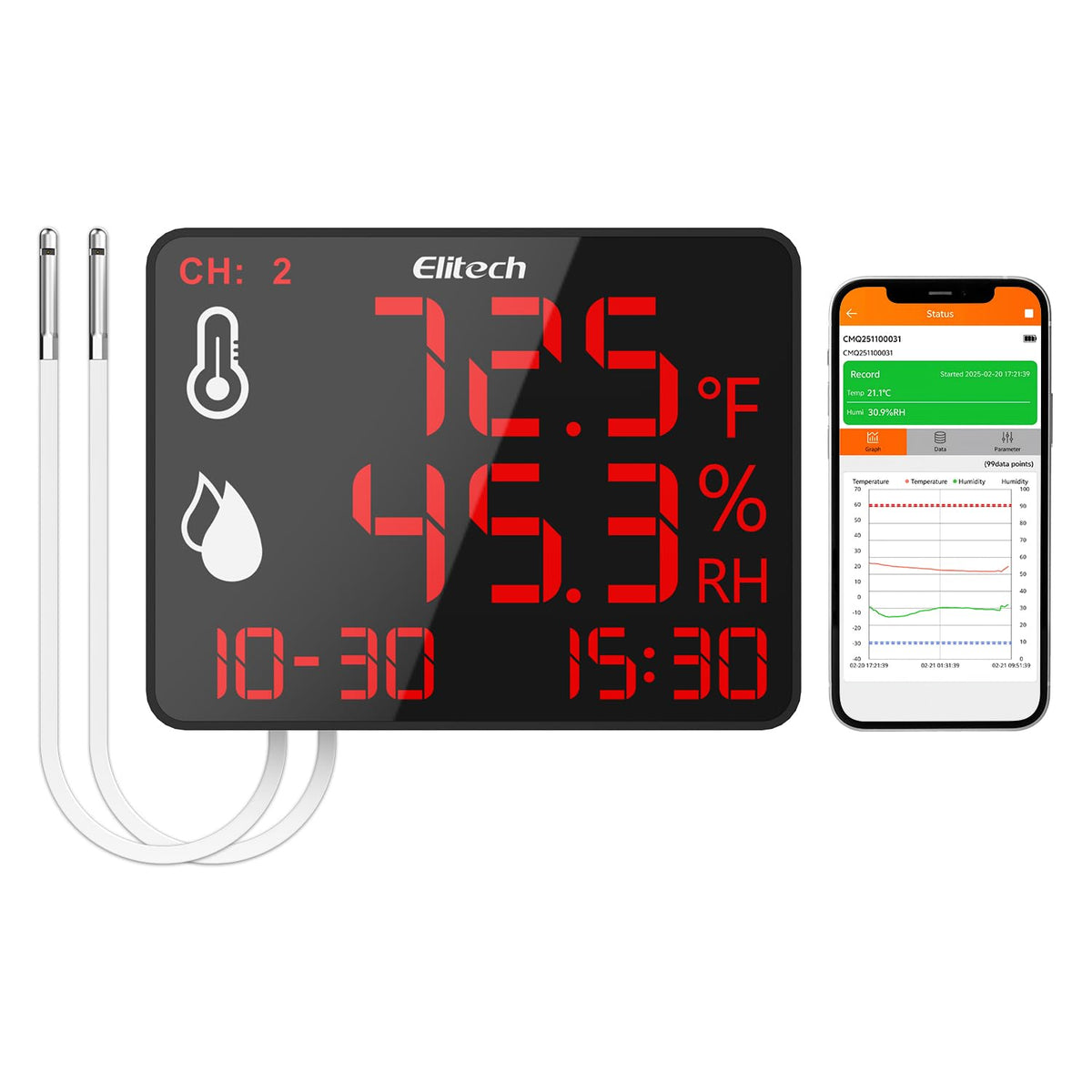

Elitech Bluetooth Hygrometer Thermometer Reusable Temperature Recorder Data Logger with Large Screen Data Storage Export, DR-230-THDE with Dual External Temperature and Humidity Sensor
Elitech Bluetooth Hygrometer Thermometer Reusable Temperature Recorder Data Logger with Large Screen Data Storage Export, DR-230-THDE with Dual External Temperature and Humidity Sensor
Couldn't load pickup availability
Product description
Technical Parameters
| Measuring Range | -40~176℉(-40~80℃); 0%RH~95%RH |
| Measurement accuracy | ± 0.9℉/0.5 ℃; ± 5%RH |
| Data storage | Cyclic storage，Auto-Overwrite Storage |
| Bluetooth Range | Up to 45 meters(167ft) in an open environment |
| Recording interval | 10s~24H can be set (default 10 minutes) |
| Power input | 5V/2A |
| Operating Environment | -20~60℃, 0~90%RH (non-condensing) |
| Screen | 10.6" Plexiglass panel |
| Sensor type | 2 Meters Digital temperature and humidity sensor |
| Resolution | 0.1℃/0.1%RH |
| Memory Maximum | Maximum 30,000 groups |
| Report Format | PDF report via Elitech Tools APP |
| Alarm parameters | 3 seconds /10 seconds/constant ringing (default off) |
| Power Source | Corded Electric |
| Protection level | IP50 |
| Dimensions | 8.5*6.5*0.8 inch |
-
How to trigger an alarm after the temperature and humidity exceed the limit?
When any measurement parameters of temperature and humidity exceed the limit, the device flashes the screen every 1 second. If an external alarm is connected, there can be an audible and visual alarm.
-
How to connect the Elitech iCold APP？
Download Elitech iCold APP and Enter Bluetooth Data Logger Interface, then you can find Nearby devices via Bluetooth according to S/N.
-
How to Reset & Reuse the Logger？
After stopping the recording through the APP, it can be reset for use.
Note: After manually stopping the record, you need to reconfigure the parameters to turn on the record again.
-
How to export data?
After connecting the device to the Elitech iCold APP, you can export data reports in PDF format through the APP.
-
How to achieve sound and light alarm through an external alarm?
After connecting the alarm, open the Elitech iCold APP, enter config, and set the audible alarm (choose from 3 tones/10 tones/continuous).
- 10.6" Jumbo Display with Multi-Scenario Adaptability - The 10.6-inch oversized screen ensures clear visibility across large spaces like warehouses and labs. Its supports versatile applications in industrial workshops, wine cellars, cold storage, and more.
- 30,000 Data Points Auto-Overwrite Storage - Robust cyclic storage capacity automatically overwrites old data, ensuring critical information is never lost. Paired with a free app, users can export real-time charts and instant PDF reports for seamless data management.
- Dual-Channel Monitoring & Smart Alerts - Track two zones simultaneously with dual external sensors. Customizable alarms include screen flashing and an optional 110dB external siren, with adjustable delays (3–10 seconds) to prevent false alerts.
- Bluetooth Connectivity & Free App Integration - Monitor data remotely via Bluetooth (up to 147ft range) using the Elitech iCold app. Features include real-time graphs, parameter configuration, and automatic data recording, all accessible from a smartphone.
- Universal Power & Flexible Installation - Supports 100–240V power input with four interchangeable plugs (US, EU, UK, China standards). Offers wall-mounting and desktop stand options, ensuring easy deployment in diverse global environments.
