KETOTEK

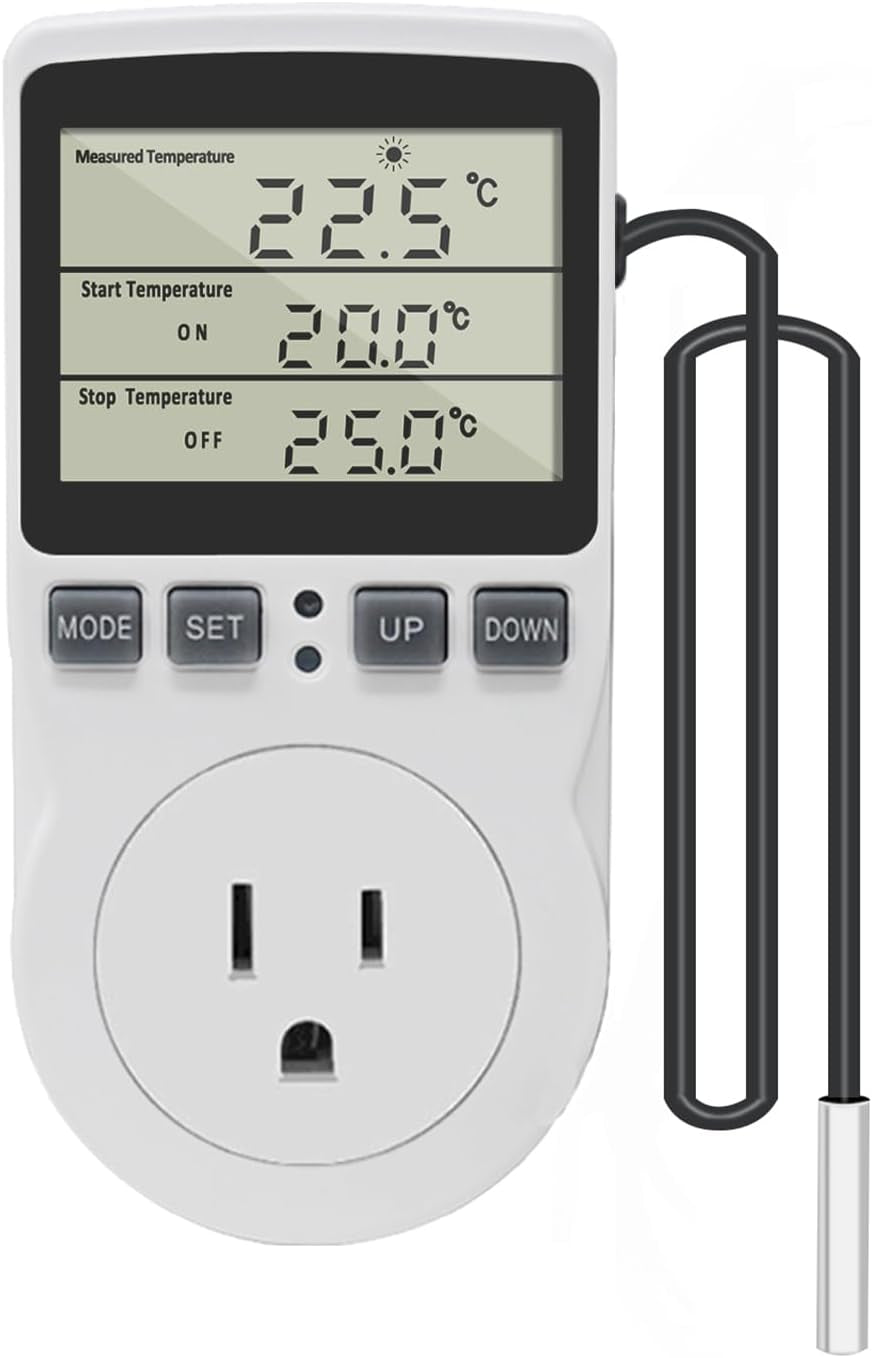

KETOTEK Digital Thermostat Outlet Plug, 120V 15A Temperature Controller with 9.8Ft Probe, Heating/Cooling Mode, Celsius/Fahrenheit Display, for Greenhouse Reptile Fermentation
KETOTEK Digital Thermostat Outlet Plug, 120V 15A Temperature Controller with 9.8Ft Probe, Heating/Cooling Mode, Celsius/Fahrenheit Display, for Greenhouse Reptile Fermentation
Couldn't load pickup availability
Product description
This thermostat plug has temperature control function and timing function. It is widely used for aquarium, reptile, incubator, terrarium, freezer, refrigerator, heater, fridge, homebrew, vivarium, fermentation, pet breeding, heat mat, industrial equipment and other temperature-controlled system.
Features:
- Heating/cooling mode
- Cycle timing and Countdown
- Temperature calibration
- Memory function: all current settings will be saved after power off.
- Reset
Specification:
- Power Supply: AC 120V±15% 60Hz
- Temperature control range: -40~248℉ (-40℃~120℃)
- Control accuracy: ±1%
- Sensor: NTC10K/B3950
- Output: Max 15A/120V (The relay is max 15A. Please use resistance load less than 15A, inductive load less than 2A.)
- Timing accuracy: MAX 10minutes
Temperature control mode
Set start temperature and stop temperature, when start temperature > stop temperature, the thermostat outlet will work in cooling mode, and when start temperature < stop temperature, it will work in heating mode. Temperature control range: -40~248℉ (-40℃~120℃), ℃/℉ convertible.
For example, set start temperature=30℉, stop temperature=35℉, heater will start to heat when measured temperature<30℉, and will stop heating when measured temperature≥35℉. And until the measured temperature drops under 30℉again, KT3100 will work again.
Timing function
F01-Cycle timer mode
Periodic on/off cycling. The device works during ON time and stop working during OFF time. It will keep working in cycles. For example, set ON=0:05, OFF=0:02, this device will work for 5 minutes and stop working for 2 minutes, and then work again in cycles.
Please note: After setting, press and hold "MODE" for 3 seconds to start the programme.
F02-countdown ON mode
Delayed start. The device starts to work after CD ON time ends. For example, set CD ON=0:05, the device starts to work after 5 minutes.
Please note: After setting, press and hold "MODE" for 3 seconds to start the programme.
F03-countdown OFF mode
Delayed shutdown. The device stop working after CD OFF time ends. For example, set CD OFF=0:05, the device works for 5 minutes and stop working forever after 5 minutes.
Please note: After setting, press and hold "MODE" for 3 seconds to start the programme.
F04-countdown ON/OFF mode
Delayed start and stop. The device starts to work after CD ON time ends and stop working after CD OFF time ends. For example, set CD ON=0:02, CD OFF=0:05, the device will start to work after 2 minutes, then work for 5 minutes and stop working forever.
Please note: After setting, press and hold "MODE" for 3 seconds to start the programme.
More Functions
Switchable between Celsius and Fahrenheit
Press and hold "SET" button to switch between Celsius and Fahrenheit.
Temperature Calibration
1. Press and hold the "MODE" button while plugging the thermostat in the outlet.
2. When the screen displays '0.0' and blinks, press the "UP" or "DOWN" button to adjust the difference.
3. Press and hold the "MODE" button again to save the settings.
Reset
To reset the thermostat, press the reset button using the white reset tool included in the package.
Widely used for aquarium, reptile, incubator, terrarium, freezer, refrigerator, heater, fridge, homebrew, vivarium, fermentation, heat mat, and other temperature-controlled system.
Greenhouse
Reptile
Fermentation
Incubator
| Customer Reviews | 4.3 out of 5 stars 118 | 4.2 out of 5 stars 60 | 4.1 out of 5 stars 80 | 4.4 out of 5 stars 25 | 4.5 out of 5 stars 81 | 4.9 out of 5 stars 25 |
|---|---|---|---|---|---|---|
| Price | $17.99$17.99 | $19.99$19.99 | $29.99$29.99 | $19.99$19.99 | $21.99$21.99 | $25.99$25.99 |
| Function | Heating/Cooling | Heating/Cooling | Humidifying/Dehumidifying | Heating/Cooling | Heating/Cooling | Heating/Cooling |
| Temperature control range | -40℃~120℃/-40℉~248℉ | -58~248℉ | no data | -40℃~120℃/-40℉~248℉ | -40℃~120℃/-40℉~248℉ | -40℃~120℃/-40℉~248℉ |
| Timer Function | ✓ | X | X | ✓ | no data | ✓ |
| Humidity control range | no data | no data | 20%RH~95%RH | no data | no data | no data |
| Max Output | 15A Relay Output | 10A Direct Output | 15A Relay Output | 15A Relay Output | 15A Relay Output | 15A Relay Output |
| Backlight | no data | no data | no data | ✓ | ✓ | ✓ |
- 【Plug-and-play design, easy to use.】 Simply plug in your heating/cooling device, set your desired start and stop temperatures, and let the KETOTEK thermostat plug do the rest. This thermostat plug automatically switches between heating and cooling modes based on your settings and control the device to work. Power supply: 100~250V AC; Output: Max 15A/120V.
- 【Temperature control function with ±1℃/±2℉ control accuracy.】 Wide temperature range: -40℃ to 120℃ (-40℉ to 248℉) with control accuracy of ±1℃/±2℉. Just set Start Temperature and Stop Temperature, then enjoy automated temperature control without complex wiring. For heating mode, set Start Temperature < Stop Temperature; For cooling mode, set Start Temperature > Stop Temperature.
- 【Timing function】 This thermostat plug outlet also has F01~F04 modes for cycle timing and countdown: F01 Cycle Timer mode; F02 CD ON mode, F03 CD OFF mode, F04 CD ON and CD OFF mode. You can choose F01 mode to auto-cycle the device ON/OFF at set intervals, or choose F02~F04 modes to set countdown for device ON/OFF. Set range: 0~99 hours 59 minutes. Please note that temperature control function and timing function cannot be used at the same time.
- 【Versatile function】 This temperature controller outlet plug is equipped with a 3-meter NTC 10K temperature sensor for rapid response, preventing temperature drift. It works in both Fahrenheit and Celsius. The built-in memory function retains the settings in case of power outage. This thermostat plug supports temperature calibration for ultra-precise adjustments. And it has a reset function, ensuring a fresh start whenever needed.
- 【Wide Range of Application】 Made in fire-resistant and durable materials for long-term stable operation, this temperature controller plug is suitable for various applications requiring precise temperature control and management, such as greenhouse, reptile, incubator, terrarium, freezer, refrigerator, heater, fermentation, heat mat, and other temperature-controlled system.
